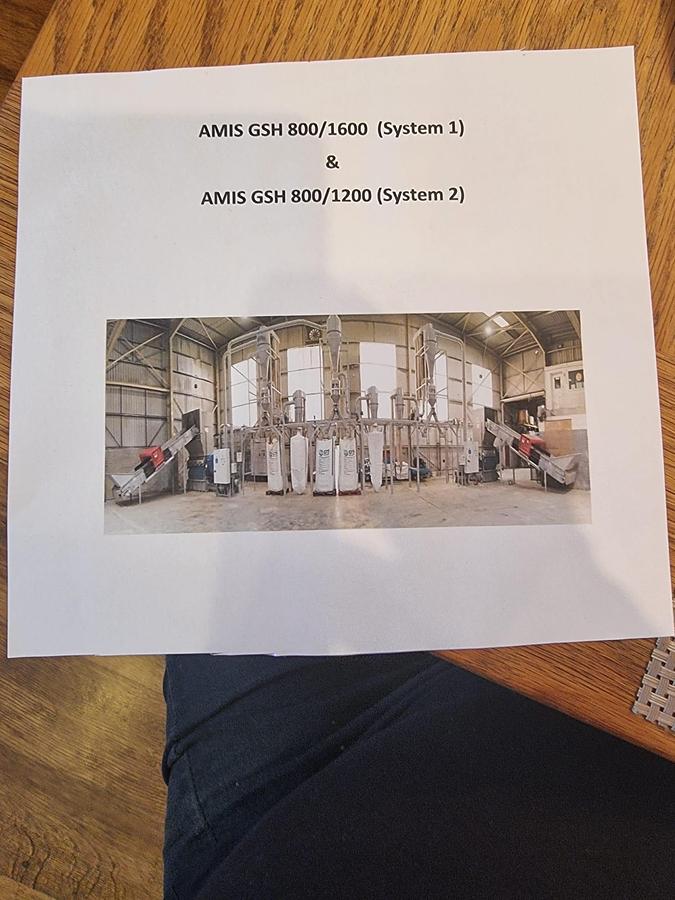

2022 Amis GSH 800/1600 Plastics Granulator Plant Bagging Line

Amis GSH 800/1600 Plastics Granulator Plant. Immediate availability.

• Year: 2022
• Weight: 12,500 kgs

Plant consisting of:

Hopper

Conveyor feed hopper equipped with curtains to prevent fly back.

Hopper can be lifted together with the hinged upper housing part hydraulically.

Therefore the rotor is easy acceptable for maintenance and cleaning

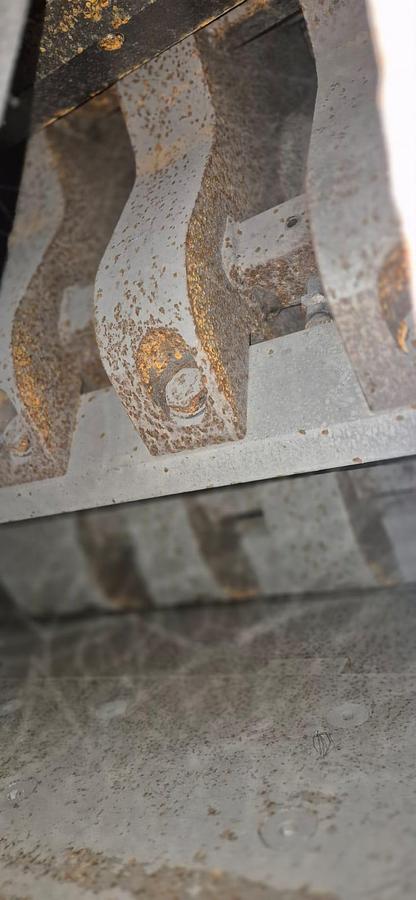

Rotor, Open 7 row type rotor in welded steel construction with 7 x 4 rotating knives angled in slanted form to give an X type cross cut action.

Extended rotor shaft for mounting of flywheel.

Pre-adjustable rotor knives for minimum downtime at knife change

Rotor bearings; Bearings with external outboard steel bearing housings. Rotor weld beaded with wear resistant surface

Knife setting ig: Future supplied with the machine for quick adjustment of the knives outside the machine. Minimizes downtime and makes knives change easer

Housing design; Centrally hinged two piece weided steel construction, creating a dam sher design. 3rd stator knite is mounted at the backside of the upper housing part which reduces the aggressiveness of the machine and allows the grinding of thick walled materials and lumps. Replacable wear plates on the sides of cutting chamber walls.

Upper housing access; The upper housing is easily opened by means of electrically energized hydraulic assembly. This allows for quick access during knife replacement or screen removal.

Screen mounts; The screen is located in a hinged support and is removed hydraulically through the inspection door in the lower section of the housing Base frame: The granulator, complete with the drive motor (on tension rails) with pulleys and V - beft casing is mounted on a flat frame. The frame is supplied with anti-vibration pads.

Pulleys: Oversized to cope with peak loads that may occur. The granulator pulley is designed as a fly wheel. Auxliary flywheel can be installed on the non-driven side for additional inertia

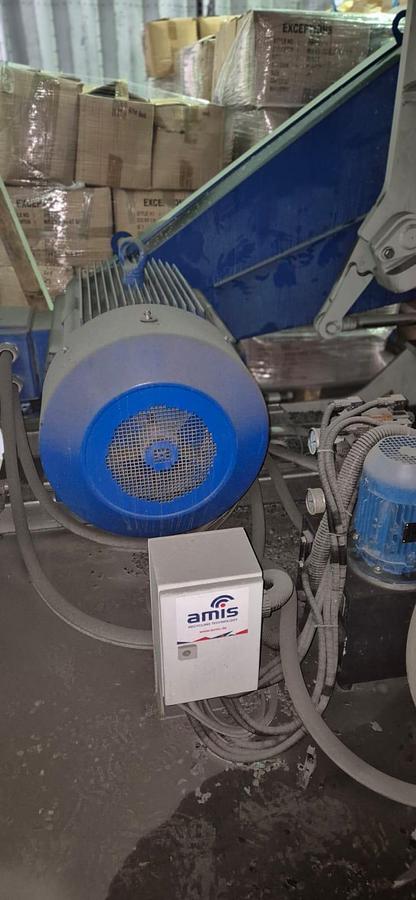

Main drive; AC - motor 160 kW three phase motor, type B3, protection IP 54,

400 V, 50 Hz. 1500 rpm, heavy duty bearings.

Safety devices; integrated run down safety devices prevent access to the unit until the rotor has reached a stand still.

Also included:

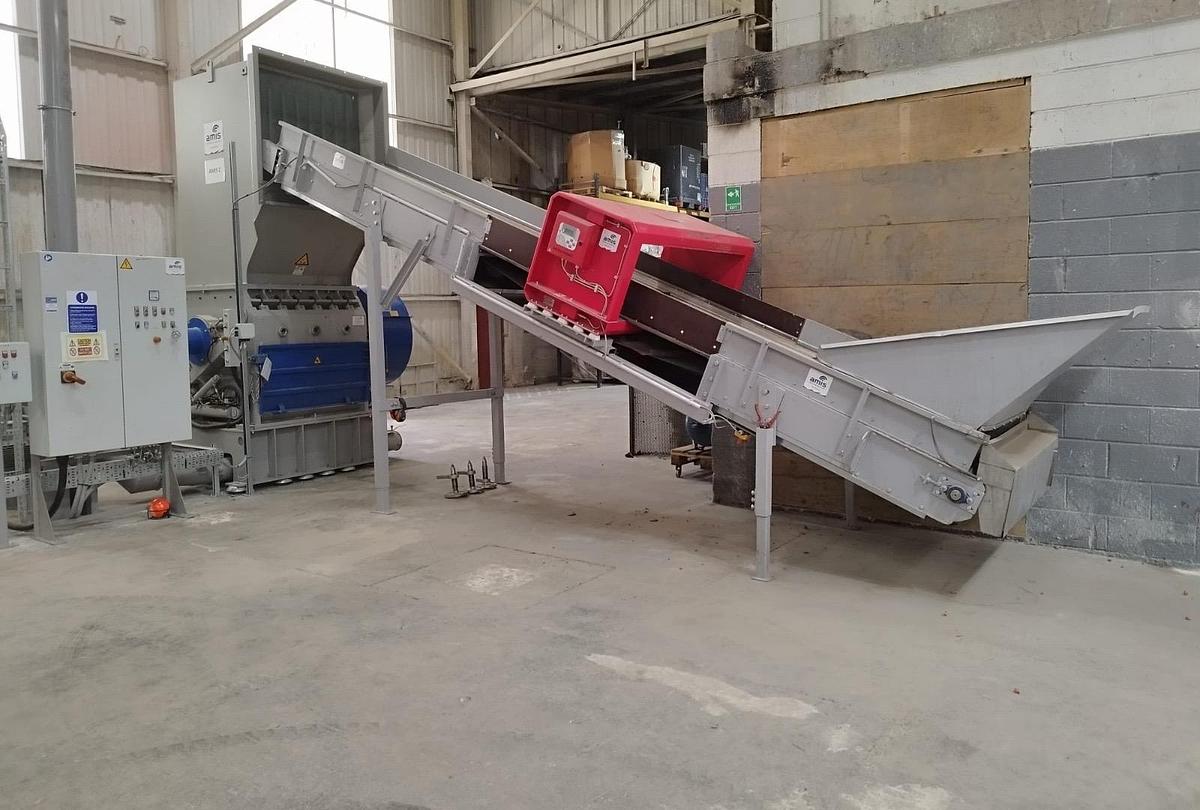

Inclined feeding conveyor

Inclined length approx: 6000 mm

Width approx: 1180 mm

Side walls approx: 200 mM

- built in sturdy frame construction in heavy duty version,

- gear motor, 1,5 kW AC - drive,

- amperage load controlled to prevent overfeeding.

Metal detection bridge

For detecting of metallic contamination

In the event of metal detection, the belt will stop and reverse approx. 1000 mm.

The operator has to pick up the metallic part and reset the belt.

Technical features:

Detection width: 1200 mm

Detection height: 500mm

Detection precision: 5.5mm (FE-ball)

MFT 55/500 material transport system, for discharging the material from the granulator and to transport the material to double Big-Bag station.

This comprises of:

Material transport blower 11,0 kW

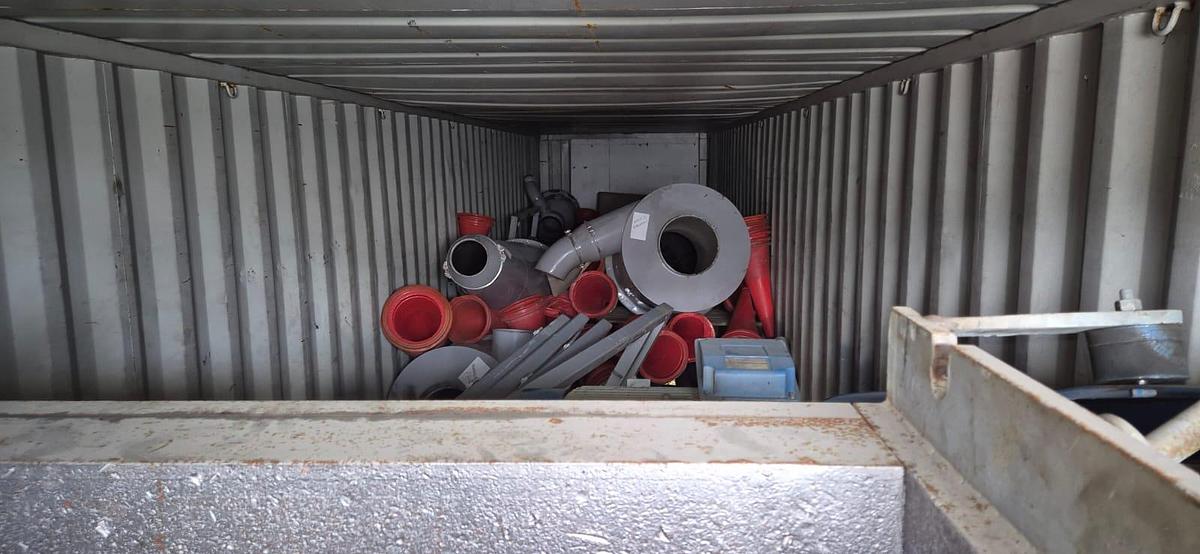

Connection pipe work © 200 mm

Cyclone separator ® 800 x 2400 mm

Mounting frame for double Big-Bag discharge

Filter hood with 12 hanging filter bags

Pneumatic Big Bag switch with level sensors

Light indicators when BB is full

Fines separator type FAS 500 with 2,2 KW blower single Big-Bag

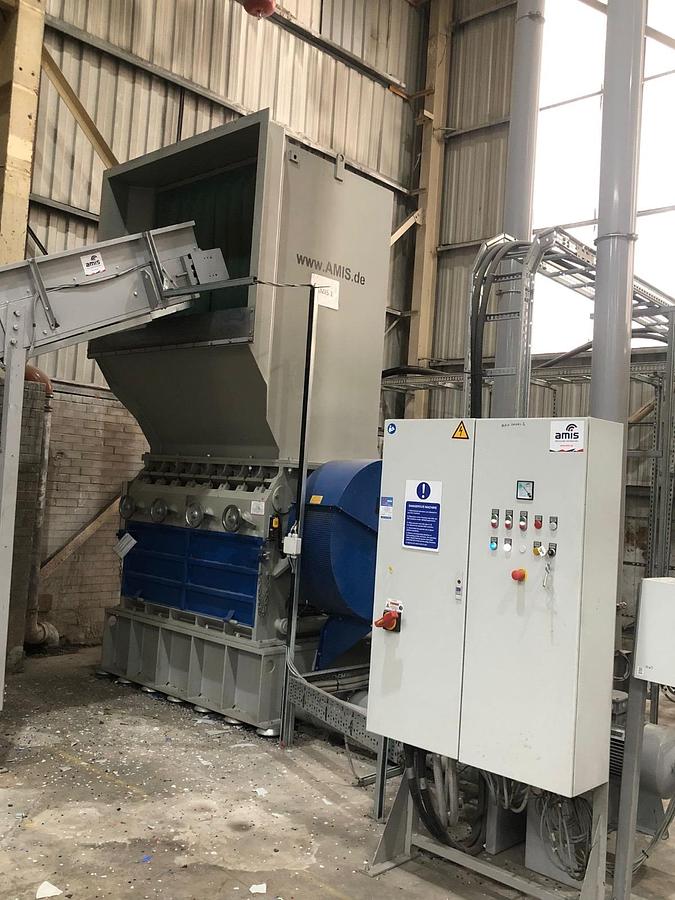

Electrical control cabinet to control the entire system

All switch components are incorporated in a sturdy steel pilate cabinet. Switches are designed with automatic star-delta protection, press button switched with indicator lights, main switch is lockable, wired to a terminal strip, including fuses.

Designed to the current valid VDE safety regulations.

Cables between the individual components and the panel are not included

Spare part package

- 1 set spare rotor knives = 14 pcs.

- 1 set spare stator knives = 2 pcs.

- 1 set spare block knives = 2 pcs.

- 1 spare screen ® mm upon request

For further information or to arrange a viewing, please get in touch.
